- The StewMac Ebony Acoustic Guitar Bridge is a quality polished 6-string bridge with countersunk pin holes for Martin guitar
- This oversized bridge has a slightly larger footprint to cover any finish chips or damage on the guitar top around the perimeter of the old bridge's outline
- String spread is 2-1/8" (54.00mm), and the saddle slot is 3/32" x 2-29/32" (2.40mm x 74.00mm)
- Length is 6.060" (154.00mm), width is 1.500" (38.00mm)
- Saddle not included

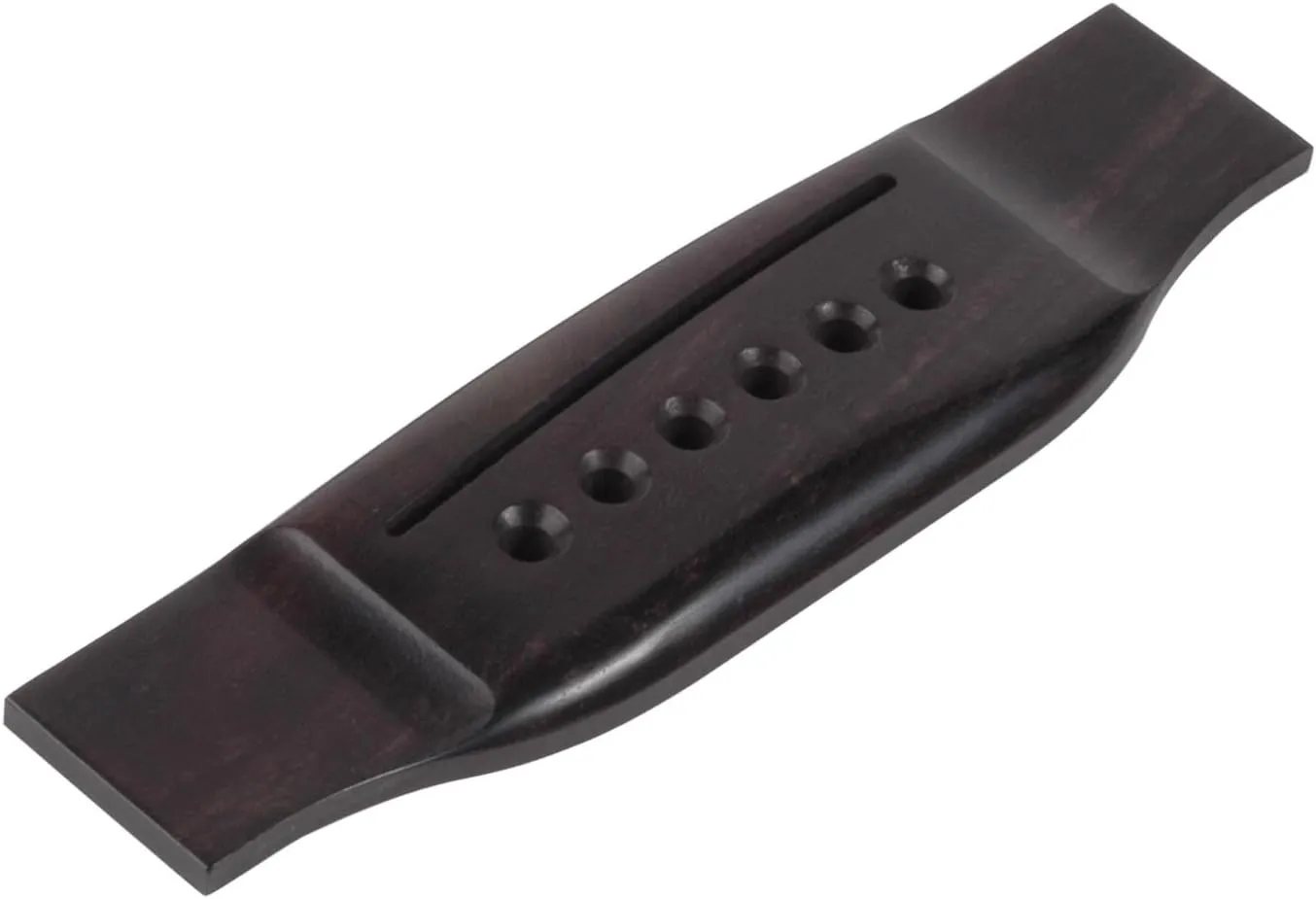

The StewMac Ebony Acoustic Guitar Bridge is a quality polished 6-string bridge with countersunk pin holes for Martin® guitar.
Oversized bridges have a slightly larger footprint to cover any finish chips or damage on the guitar top around the perimeter of the old bridge's outline.
Oversized bridge specs:
- String spread: 2-1/8" (54.00mm)
- Saddle slot: 3/32" x 2-29/32" (2.40mm x 74.00mm)
- Thickness: 3/8" (9.50mm)
- Length: 6.060" (154.00mm)
- Width: 1.500" (38.00mm)
- Distance from top of bridge to saddle slot on treble side: .250" (6.30mm)
- Distance from top of bridge to saddle slot on bass side: .385" (9.75mm)
- Distance from top of bridge to to bridge pin holes: .750" (19.00mm)
Saddle not included.
